Description
Applications
Engraving on gold, silver, and other metals
Engraving on opaque plastics
Cutting gold up to thicknesses above 1 mm
Cutting silver up to 1 mm thickness

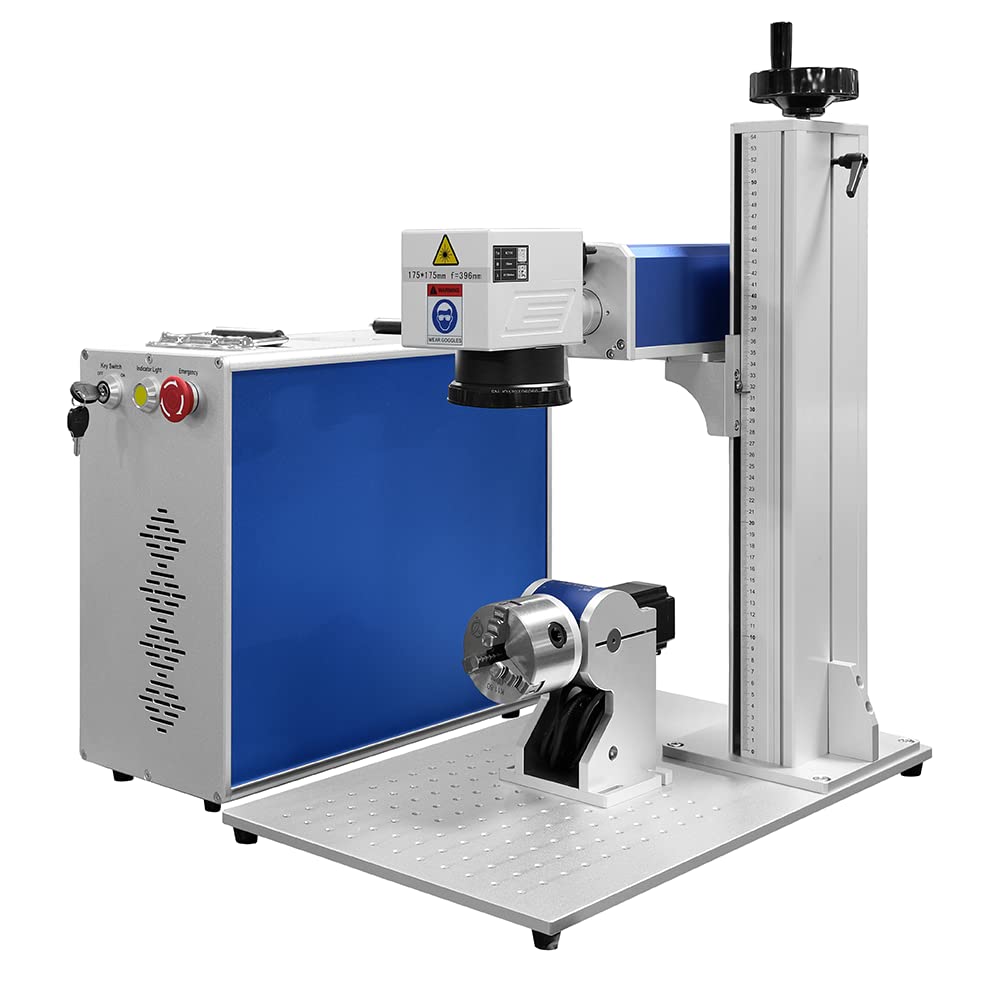

fiber laser engraving system
Technical Specifications
Model: RF-FMS-50 / PF-FMS-30
Cooling System: High-power, low-noise air cooling
Laser Type: Fiber laser, pulse width 80 – 150 ns
Wavelength: 1064 nm
Working Area: 25 × 25 cm to 25 × 77 cm (customizable)
Rotary Attachment: Available
User Interface: Easy operation
Pulse Width: 110 – 140 ns / 120 – 150 ns (depending on model)
Output Power: 50 W / 30 W
Power Consumption: Low energy usage
Guide Light: 650 nm
Power Supply: AC 220 V, 50/60 Hz
Weight: 40 kg
Operating Temperature: 10°C – 40°C
Engraving Area: 110 × 110 mm
Surface frosting/matting on gold surfaces
Portrait engraving on metals
